How to Upload Data in GST ANX-1 using the GST New Return Offline Tool

Updated on :

08 min read.

The GST New Return Offline Tool has been launched, on a trial basis, for users to familiarise themselves with the return forms, which have been introduced under the GST new return system. Currently, only the annexures under the main return i.e. GST ANX-1 and GST ANX-2 are available – both on the online portal as well as offline.  First, a user needs to Download and Install the GST New Return Offline Tool.

Step 1: Adding a Profile in the Offline Tool

1. Once the tool has been opened, a user can click on ‘Manage Profile’ in order to add or modify a profile.

gst anx-1

2. Click on ‘Add Profile’ to add in a new taxpayer’s profile into the tool, and enter all the relevant details such as GSTIN, trade name, etc. Click on ‘Save’ once all the details have been entered.

gst anx-2

3. A confirmation message will be displayed on the screen stating that ‘Profile is saved successfully’.

gst anx-3

4. Go back to the main menu by clicking on the ‘Back’ button.

5. A profile, once added, can be modified by clicking on ‘Modify Profile’ under the ‘Manage Profile’ option on the home screen. A profile can be searched for using the search bar, and a user has the option to edit or delete a profile once it has been added.

Step 2: Preparing GST ANX-1

1. Open the offline tool, and select the relevant GSTIN from the drop-drop list.

gst anx-1

2. The Trade/Legal name and Return Type gets auto-populated.

3. The Financial Year and Tax Period needs to be manually selected by the user.

gst anx-1

4. Once the selections have been made, click on ‘Proceed’.

5. A dashboard containing several tiles such as Annexure of Supplies (GST ANX-1) and Annexure of Inward Supplies (GST ANX-2) will be displayed.

gst anx-1

6. Click on the ‘Prepare Offline’ button under Annexure of Supplies (GST ANX-1). The GST ANX-1 dashboard will get displayed.

gst anx-1

The following functionalities will be available on the dashboard-

  • Import Excel/CSV files: An Excel/CSV file containing filled-in data can be imported into the offline tool. The data of a single section/table can be imported using a CSV file, whereas the data for all tables can be imported together using an Excel file.
  • Open downloaded JSON files: A user can import the GST ANX-1 JSON, which has been downloaded from the GST portal, into the offline tool.
  • Remove data in all tables: This is to remove all data from all the tables in the offline tool.
  • Generate JSON file to upload: This feature is to generate a JSON file, which will be used to upload the GST ANX-1 prepared offline, to the GST portal.
  • Export to Excel: A user can export all the filled-in details from the offline tool to an Excel file.

7. A user can enter data into the offline tool either manually, or by importing data.

(i) To enter data manually, the user has to select the relevant table for which he wishes to enter data, from the list below- 3A – Supplies to unregistered persons/consumers (B2C)  3B – Supplies to registered persons (B2B)  3C & 3D – Exports with/without payment of tax (EXP)  3E & 3F – Supplies to SEZ with/without payment of tax (SEZ)  3G – Deemed exports (DE)  3H – Inward supplies attracting reverse charge (RCM)  3I – Import of services (IMPS)  3J – Import of goods (IMPG)  3K– Import of goods from SEZ units/developers (IMPG SEZ)  – Supplies made through e-commerce operators

gst anx-1

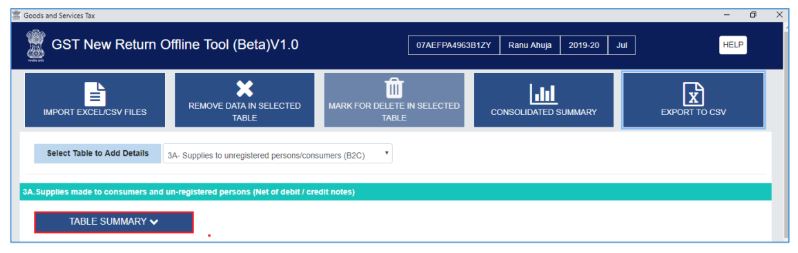

For example, if a user has selected table ‘3A – Supplies to unregistered persons/consumers (B2C)’, he needs to minimize the ‘Table Summary’ by clicking on itthen click on the ‘Add Document’ button, then select the applicable check-box, either ‘Differential % of tax rate’ or ‘Supply covered under sec 7 of IGST Act’ and then enter data in the relevant fields.

gst anx-1

On clicking the (+) button, the ‘Item Details’ field gets displayed. A user needs to enter the data, and then click on ‘Save Document’

gst anx-1 14

(ii) To import data, a user has two input sources – Excel and CSV files. A user has to select the ‘Import Excel/CSV files’ button from the dashboard, and a screen with the options to import an Excel/CSV file gets displayed.

gst anx-1

-To import a CSV file, a user needs to select an option from the drop-down list of tables available, and then select the relevant CSV file, which has been filled in, by clicking on ‘Import CSV’. The CSV file template is also available to the user on downloading the offline tool.

gst anx-1 gst anx-1 10b gst anx-1

Note: Warning messages will get displayed, asking the user if he wants to proceed with the import of the Excel/CSV file, the user needs to select ‘Yes’.

gst anx-1

Upon import of data successfully, the data gets auto-populated in the relevant tables of the offline tool.

8. To view the Table Summary of data that has been entered, a user has to click on ‘Table summary’ after selecting a particular table from the options available.

gst anx-1

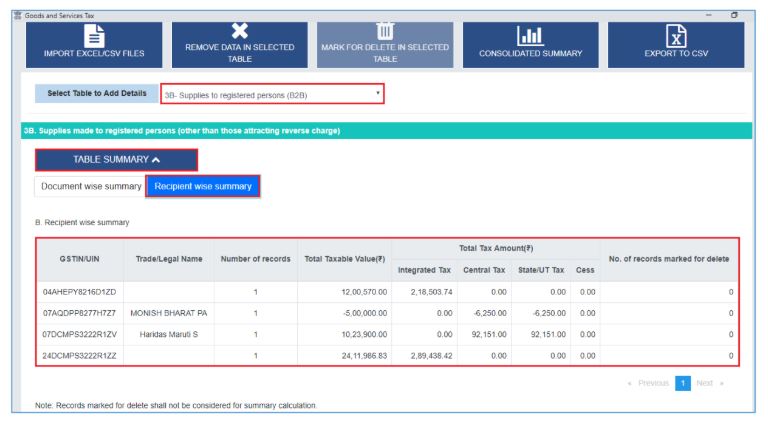

A user can view this summary either document-wise or recipient-wise.

gst anx-1 gst anx-1

Click on ‘Back’ to go back to the main dashboard.

9. Once data has been filled-in in all the relevant tables, a user can click on ‘View consolidated summary’ on the main dashboard in order to view a summary of the data that has been entered.

gst anx-1

10. In order to view any part of the GST RET-1 draft, click on ‘Draft Return’ and the relevant part of the return will be displayed. The draft return is only for viewing, and cannot be edited.

11. Once the GST ANX-1 is ready, the JSON file needs to be generated, which will be uploaded on the GST Portal.

Step 3: Generating the JSON file

1. To generate the JSON file which will be uploaded on the GST Portal, click on ‘Generate JSON file to upload’ from the main dashboard.

json download

2. A JSON file will be generated and downloaded. This will usually get saved in the ‘Downloads ‘folder of your system.

json download

3. Once downloaded, this JSON file will need to be uploaded on the GST Portal.

Step 4: Uploading the JSON file on the GSTN

1. Login to the GST Portal, after entering valid credentials. The GST home page will be displayed.

json upload

2. Go to ‘Services’, click on ‘Returns’, and then click on ‘File Returns (Beta)’.

json upload

3. The New Return (Trial) page will get displayed. Select the details as applicable such as financial year, return filing period, etc.

json upload

4. Click on ‘Proceed’.

5. An option to upload the JSON file will be available. Click on the ‘Choose File’ button, and select the relevant JSON file from your system.

json upload json upload

6. The GST Portal will validate the data which is being imported. This could take up to 15 minutes.

Json upload

7. Once the data has been successfully validated, it will get imported into the system.
